ICX285AQ - Progressive Scan CCD Image Sensor with Square Pixel for Color Cameras

Sony Corporation

📥 Download Datasheet

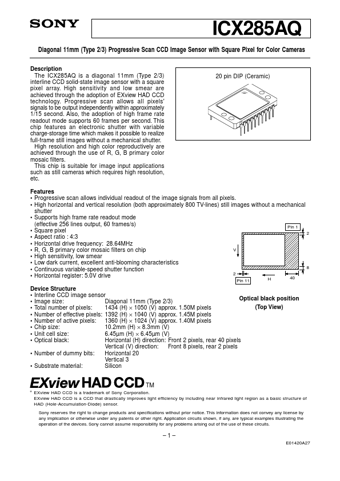

ICX285AQ Datasheet Preview — Preview of ICX285AQ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICX285AQ
Manufacturer	Sony Corporation
File Size	219.63 KB
Description	Progressive Scan CCD Image Sensor with Square Pixel for Color Cameras
Datasheet	ICX285AQ_SonyCorporation.pdf

ICX285AQ Product details

Description

The ICX285AQ is a diagonal 11mm (Type 2/3) interline CCD solid-state image sensor with a square pixel array.

Features

an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still images without a mechanical shutter. High resolution and high color reproductively are achieved through the use of R, G, B primary color mosaic filters. This chip is suitable for image input.
