ICX205AL - Diagonal 8mm (Type 1/2) Progressive Scan CCD Image Sensor

General Description

interline CCD solid-state image sensor with a square pixel array and 1.45M effective pixels.

Progressive scan allows all pixels' signals to be output independently within approximately 1/7.5 second.

Key Features

  • an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without a mechanical shutter. High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors. This chip is suitable for.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICX226AL Diagonal 4.5mm (Type 1/4) CCD Image Sensor Sony Corporation
ICX252AKF Diagonal 8.933mm (Type 1/1.8) Frame Readout CCD Image Sensor Sony Corporation
ICX252AQ Diagonal 8.933mm (Type 1/1.8) Frame Readout CCD Image Sensor Sony Corporation
ICX252AQF Diagonal 8.933mm (Type 1/1.8) Frame Readout CCD Image Sensor Sony Corporation
ICX254AK Diagonal 6mm (Type 1/3) CCD Image Sensor Sony Corporation

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
ICX205AK Diagonal 8mm (Type 1/2) Progressive Scan CCD Image Sensor
ICX204AK CCD Image Sensor
ICX204AL Diagonal 6mm (Type 1/3) Progressive Scan CCD Image Sensor
ICX206AK CCD Image Sensor
ICX206AKB CCD Image Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

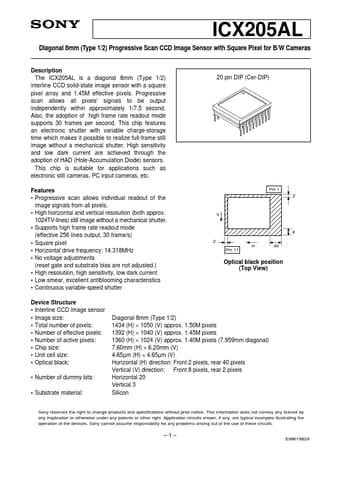

ICX205AL Diagonal 8mm (Type 1/2) Progressive Scan CCD Image Sensor with Square Pixel for B/W Cameras Description The ICX205AL is a diagonal 8mm (Type 1/2) interline CCD solid-state image sensor with a square pixel array and 1.45M effective pixels. Progressive scan allows all pixels' signals to be output independently within approximately 1/7.5 second. Also, the adoption of high frame rate readout mode supports 30 frames per second. This chip features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without a mechanical shutter. High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.
