CXA3820M - AC-DC Controller

Name: CXA3820M
SKU: CXA3820M-1099269

Sony

📥 Download Datasheet

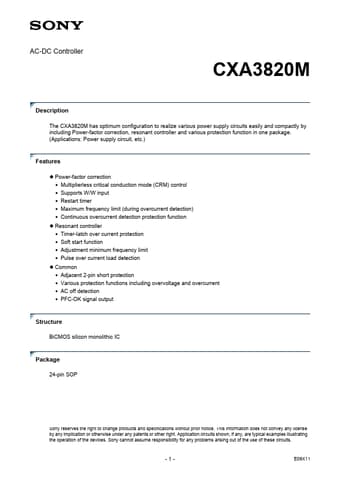

CXA3820M Datasheet Preview — Preview of CXA3820M PDF

Datasheet Details

Part number	CXA3820M
Manufacturer	Sony
File Size	562.74 KB
Description	AC-DC Controller
Datasheet	CXA3820M-Sony.pdf

CXA3820M Product details

Description

The CXA3820M has optimum configuration to realize various power supply circuits easily and compactly by including Power-factor correction, resonant controller and various protection function in one package.

Features

Power-factor correction.
Multiplierless critical conduction mode (CRM) control.
Supports W/W input.
Restart timer.
Maximum frequency limit (during overcurrent detection).
Continuous overcurrent detection protection function.
Resonant controller.
Timer-latch over current protection.
Soft start function.
Adjustment minimum frequency limit.
Pulse over current load detection.
Common.
Adjacent 2-pin short protection.
Various prote.
