CXA3810M - AC-DC Controller

Name: CXA3810M
SKU: CXA3810M-739856

Sony

📥 Download Datasheet

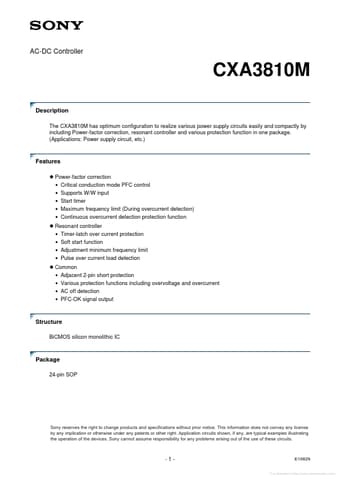

CXA3810M Datasheet Preview — Preview of CXA3810M PDF

Datasheet Details

Part number	CXA3810M
Manufacturer	Sony
File Size	544.16 KB
Description	AC-DC Controller
Datasheet	CXA3810M_Sony.pdf

CXA3810M Product details

Description

The CXA3810M has optimum configuration to realize various power supply circuits easily and compactly by including Power-factor correction, resonant controller and various protection function in one package.

Features

Power-factor correction.
Critical conduction mode PFC control Supports W/W input Start timer Maximum frequency limit (During overcurrent detection) Continuous overcurrent detection protection function Timer-latch over current protection Soft start function Adjustment minimum frequency limit Pulse over current load detection Adjacent 2-pin short protection Various protection functions including overvoltage and ov.
