CXA3010Q - Read/Write Amplifier (with Built-in Filters) for FDDs

Sony Corporation

📥 Download Datasheet

CXA3010Q Datasheet Preview — Preview of CXA3010Q PDF

Datasheet Details

Part number: CXA3010Q
Manufacturer: Sony Corporation
File Size: 310.75 KB
Datasheet: CXA3010Q_SonyCorporation.pdf
Description: Read/Write Amplifier (with Built-in Filters) for FDDs

CXA3010Q Product details

Description

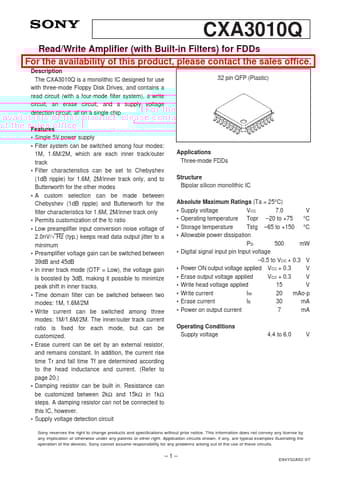

The CXA3010Q is a monolithic IC designed for use with three-mode Floppy Disk Drives, and contains a read circuit (with a four-mode filter system), a write circuit, an erase circuit, and a supply voltage detection circuit, all on a single chip.

Features

Single 5V power supply.
Filter system can be switched among four modes: 1M, 1.6M/2M, which are each inner track/outer track.
Filter characteristics can be set to Chebyshev (1dB ripple) for 1.6M, 2M/inner track only, and to Butterworth for the other modes.
A custom selection can be made between Chebyshev (1dB ripple) and Butterworth for the filter characteristics for 1.6M, 2M/inner track only.
Permits customization of the fc ratio.
Low preamp.
