CXG1096FN - Power Amplifier/Antenna Switch + Low Noise Down Conversion Mixer

Sony Corporation

The CXG1096FN by Sony Corporation is a Power Amplifier/Antenna Switch + Low Noise Down Conversion Mixer. Below is the official datasheet preview.

📥 Download Datasheet

CXG1096FN Power Amplifier/Antenna Switch + Low Noise Down Conversion Mixer by Sony Corporation - Datasheet Preview — Official preview page of the **CXG1096FN** Power Amplifier/Antenna Switch + Low Noise Down Conversion Mixer datasheet (Sony Corporation).

Datasheet Details

Part number	CXG1096FN
Manufacturer	Sony Corporation
File Size	121.32 KB
Description	Power Amplifier/Antenna Switch + Low Noise Down Conversion Mixer
Datasheet	CXG1096FN_SonyCorporation.pdf

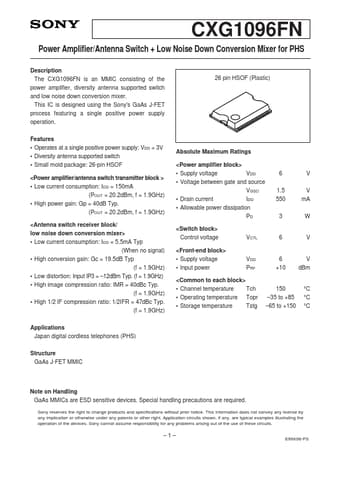

Additional preview pages of the CXG1096FN datasheet.

CXG1096FN Product details

Description

The CXG1096FN is an MMIC consisting of the power amplifier, diversity antenna supported switch and low noise down conversion mixer.

Features

Operates at a single positive power supply: VDD = 3V.
Diversity antenna supported switch.
Small mold package: 26-pin HSOF.
Low current consumption: IDD = 150mA (POUT = 20.2dBm, f = 1.9GHz).
High power gain: Gp = 40dB Typ. (POUT = 20.2dBm, f = 1.9GHz).
Low current consumption: IDD = 5.5mA Typ (When no signal).
High con.
