CXD2412AQ - Timing Generator for LCD Panels

Name: CXD2412AQ
SKU: CXD2412AQ-199729

Sony Corporation

The CXD2412AQ by Sony Corporation is a Timing Generator for LCD Panels. Below is the official datasheet preview.

Datasheet Details

Part number	CXD2412AQ
Manufacturer	Sony Corporation
File Size	1.90 MB
Description	Timing Generator for LCD Panels
Datasheet	CXD2412AQ_SonyCorporation.pdf

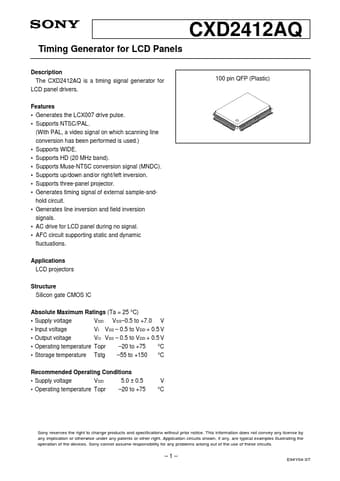

Additional preview pages of the CXD2412AQ datasheet.

The CXD2412AQ is a timing signal generator for LCD panel drivers.

Generates the LCX007 drive pulse.
Supports NTSC/PAL. (With PAL, a video signal on which scanning line conversion has been performed is used. ).
Supports WIDE.
Supports HD (20 MHz band).
Supports Muse-NTSC conversion signal (MNDC).
Supports up/down and/or right/left inversion.
Supports three-panel projector.
Generates timing signal of external sample-andhold circuit.
Generates line inversion and field inversio.
