CXD2401R - Electronic Iris Control IC

Sony Corporation

📥 Download Datasheet

CXD2401R Datasheet Preview — Preview of CXD2401R PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXD2401R
Manufacturer	Sony Corporation
File Size	318.22 KB
Description	Electronic Iris Control IC
Datasheet	CXD2401R_SonyCorporation.pdf

CXD2401R Product details

Description

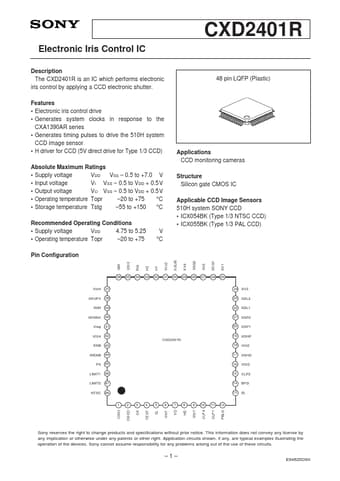

The CXD2401R is an IC which performs electronic iris control by applying a CCD electronic shutter.

Features

Electronic iris control drive.
Generates system clocks in response to the CXA1390AR series.
Generates timing pulses to drive the 510H system CCD image sensor.
H driver for CCD (5V direct drive for Type 1/3 CCD) Absolute Maximum Ratings.
Supply voltage VDD VSS.
0.5 to +7.0 V.
Input voltage VI VSS.
0.5 to VDD + 0.5V.
Output voltage VO VSS.
0.5 to VDD + 0.5V.
Operating temperature Topr.
20 to.
