CXD2400R - Timing Controller for CCD cameras

Sony Corporation

Datasheet Details

Part number	CXD2400R
Manufacturer	Sony Corporation
File Size	498.73 KB
Description	Timing Controller for CCD cameras
Datasheet	CXD2400R_SonyCorporation.pdf

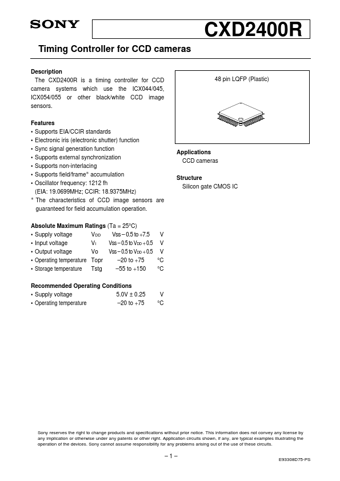

The CXD2400R is a timing controller for CCD camera systems which use the ICX044/045, ICX054/055 or other black/white CCD image sensors.

Supports EIA/CCIR standards.
Electronic iris (electronic shutter) function.
Sync signal generation function.
Supports external synchronization.
Supports non-interlacing.
Supports field/frame∗ accumulation.
Oscillator frequency: 1212 fh (EIA: 19.0699MHz; CCIR: 18.9375MHz) ∗ The characteristics of CCD image sensors are guaranteed for field accumulation operation. Absolute Maximum Ratings (Ta = 25°C) Vss.
0.5 to +7.5 V.
