CXA3202N - TX Gain Control Amplifier

Sony Corporation

The CXA3202N by Sony Corporation is a TX Gain Control Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

CXA3202N TX Gain Control Amplifier by Sony Corporation - Datasheet Preview — Official preview page of the CXA3202N TX Gain Control Amplifier datasheet (Sony Corporation).

Datasheet Details

Part number	CXA3202N
Manufacturer	Sony Corporation
File Size	163.26 KB
Description	TX Gain Control Amplifier
Datasheet	CXA3202N_SonyCorporation.pdf

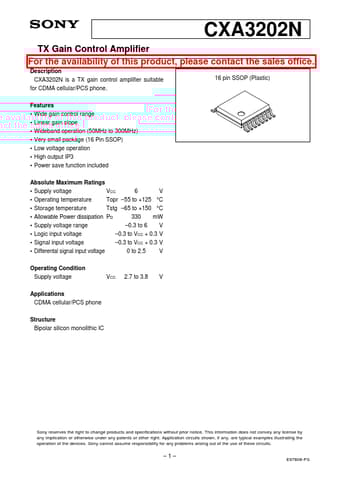

Additional preview pages of the CXA3202N datasheet.

CXA3202N Product details

Description

CXA3202N is a TX gain control amplifier suitable for CDMA cellular/PCS phone.

Features

Wide gain control range.
Linear gain slope.
Wideband operation (50MHz to 300MHz).
Very small package (16 Pin SSOP).
Low voltage operation.
High output IP3.
Power save function included Absolute Maximum Ratings.
Supply voltage VCC 6 V.
Operating temperature Topr.
55 to +125 °C.
Storage temperature Tstg.
65 to +150 °C.
Allowable Power dissipation PD 330 mW.
Supply voltage ra.
