CXA3201AN - RX Gain Control Amplifier

Sony Corporation

The CXA3201AN by Sony Corporation is a RX Gain Control Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

CXA3201AN RX Gain Control Amplifier by Sony Corporation - Datasheet Preview — Official preview page of the CXA3201AN RX Gain Control Amplifier datasheet (Sony Corporation).

Datasheet Details

Part number	CXA3201AN
Manufacturer	Sony Corporation
File Size	154.86 KB
Description	RX Gain Control Amplifier
Datasheet	CXA3201AN_SonyCorporation.pdf

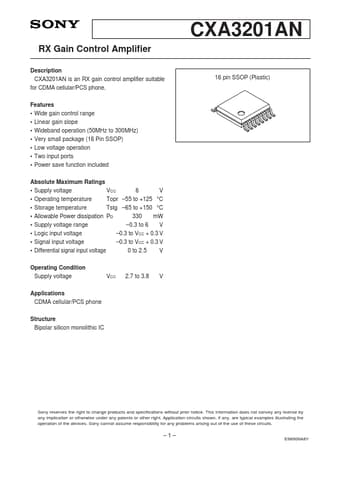

Additional preview pages of the CXA3201AN datasheet.

CXA3201AN Product details

Description

CXA3201AN is an RX gain control amplifier suitable for CDMA cellular/PCS phone.

Features

Wide gain control range.
Linear gain slope.
Wideband operation (50MHz to 300MHz).
Very small package (16 Pin SSOP).
Low voltage operation.
Two input ports.
Power save function included Absolute Maximum Ratings.
Supply voltage VCC 6 V.
Operating temperature Topr.
55 to +125 °C.
Storage temperature Tstg.
65 to +150 °C.
Allowable Power dissipation PD 330 mW.
Supply voltage ra.
