CXA3202AN - TX Gain Control Amplifier

Sony Corporation

📥 Download Datasheet

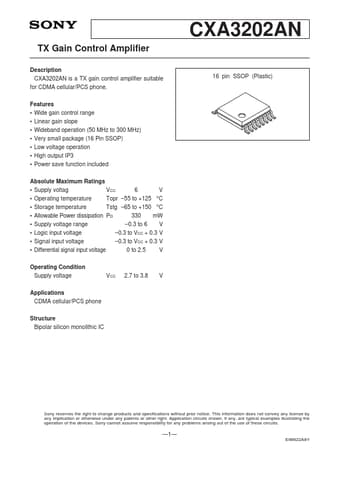

CXA3202AN Datasheet Preview — Preview of CXA3202AN PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA3202AN
Manufacturer	Sony Corporation
File Size	135.24 KB
Description	TX Gain Control Amplifier
Datasheet	CXA3202AN_SonyCorporation.pdf

CXA3202AN Product details

Description

CXA3202AN is a TX gain control amplifier suitable for CDMA cellular/PCS phone.

Features

Wide gain control range.
Linear gain slope.
Wideband operation (50 MHz to 300 MHz).
Very small package (16 Pin SSOP).
Low voltage operation.
High output IP3.
Power save function included Absolute Maximum Ratings.
Supply voltag VCC.
16 pin SSOP (Plastic) 6 V Operating temperature Topr.
55 to +125 °C Storage temperature Tstg.
65 to +150 °C A.
