CXA2515AM - RF Amplifier for CD Player and CD-ROM

Sony Corporation

📥 Download Datasheet

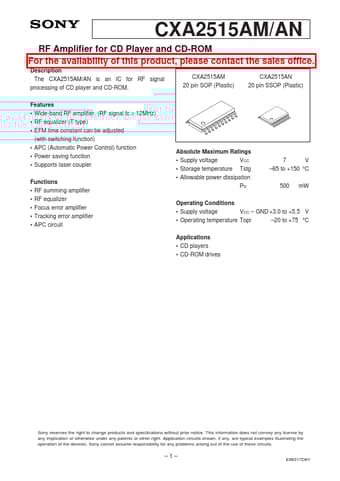

CXA2515AM Datasheet Preview — Preview of CXA2515AM PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA2515AM
Manufacturer	Sony Corporation
File Size	270.22 KB
Description	RF Amplifier for CD Player and CD-ROM
Datasheet	CXA2515AM_SonyCorporation.pdf

CXA2515AM Product details

Description

The CXA2515AM/AN is an IC for RF signal processing of CD player and CD-ROM.

Features

Wide-band RF amplifier. (RF signal fc ≥ 12MHz).
RF equalizer (T type).
EFM time constant can be adjusted (with switching function).
APC (Automatic Power Control) function.
Power saving function.
Supports laser coupler Functions.
RF summing amplifier.
RF equalizer.
Focus error amplifier.
Tracking error amplifier.
APC circuit CXA2515AM 20 pin SOP (Plastic) CXA2515AN 20 pin SSOP (Plastic) Absolute M.
