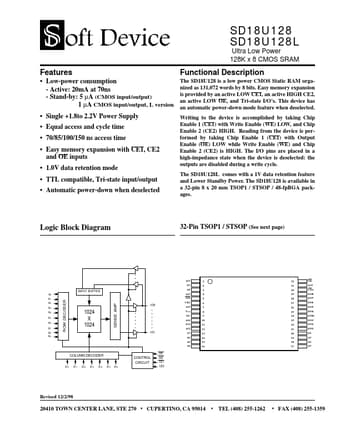

SD18U128L, SD18U128 - Ultra Low Power 128K x 8 CMOS SRAM

Datasheet Details

Part number	SD18U128L, SD18U128
Manufacturer	Soft Device
File Size	148.15 KB
Description	Ultra Low Power 128K x 8 CMOS SRAM
Datasheet	SD18U128_SoftDevice.pdf
Note	This datasheet PDF includes multiple part numbers: SD18U128L, SD18U128. Please refer to the document for exact specifications by model.

The SD18U128 is a low power CMOS Static RAM organized as 131,072 words by 8 bits.

Low-power consumption - Active: 20mA at 70ns - Stand-by: 5 µA (CMOS input/output) 1 µA CMOS input/output, L version.
Single +1.8to 2.2V Power Supply.
Equal access and cycle time.
70/85/100/150 ns access time.
Easy memory expansion with CE1, CE2 and OE inputs.
1.0V data retention mode.
TTL compatible, Tri-state input/output.
Automatic power-down when deselected Functional.
