SD18-150 - Shielded Inductors

Download the SD18-150 datasheet PDF. This datasheet also covers the SD10-R47 variant, as both devices belong to the same shielded inductors family and are provided as variant models within a single manufacturer datasheet.

Description

Six sizes of shielded drum core inductors with low profiles (as low as 1.0mm) and high power density Inductance range from .47uH to 1000uH Current range from 6.00 to 0.088 Amps Ferrite shielded, low EMI Applications Digital cameras, CD players, cellu

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SD10-R47-CooperElectronic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SD18-150
Manufacturer Cooper Electronic
File Size 404.86 KB
Description Shielded Inductors
Datasheet download datasheet SD18-150 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SD18-150-R Low profile metalized shielded drum core power inductors Eaton
SD18-151-R Low profile metalized shielded drum core power inductors Eaton
SD18-100 (SD Series) High Power Density / Low Profile / Shielded Inductors Cooper Electronic Technologies
SD18-100-R Low profile metalized shielded drum core power inductors Eaton
SD18-101-R Low profile metalized shielded drum core power inductors Eaton

Other Datasheets by Cooper Electronic

Part Number Description
SD18-151 Shielded Inductors
SD18-100 Shielded Inductors
SD18-101 Shielded Inductors
SD18-102 Shielded Inductors
SD18-1R2 Shielded Inductors

Full PDF Text Transcription

Click to expand full text

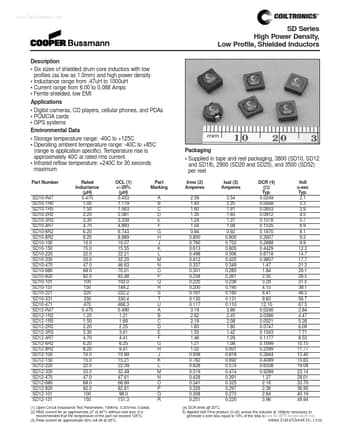

www.DataSheet4U.com Description • Six sizes of shielded drum core inductors with low profiles (as low as 1.0mm) and high power density • Inductance range from .47uH to 1000uH • Current range from 6.00 to 0.088 Amps • Ferrite shielded, low EMI Applications • Digital cameras, CD players, cellular phones, and PDAs • PCMCIA cards • GPS systems Environmental Data • Storage temperature range: -40C to +125C • Operating ambient temperature range: -40C to +85C (range is application specific).
