SD18, SD12 STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY

SD18 Description

SD03 THRU SD36 STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY APPLICATIONS * Cell Phone Handsets and Accessories * Microprocessor based equipment.

SD18 Features

* 500 Watts Peak Pulse Power per Line (tp=8/20μs)
* Protects one I/O or power line
* Low clamping voltage
* Working voltages: 3.3V, 5V, 12V, 15V, 24V, 36V
* Low leakage current MECHANICAL CHARACTERISTICS
* JEDEC SOD-323 Package
* Molding Compound Flammability Rating : UL

SD18 Applications

* Cell Phone Handsets and Accessories
* Microprocessor based equipment
* Personal Digital Assistants (PDA’s)
* Notebooks, Desktops, and Servers
* Portable Instrumentation
* Peripherals
* Pagers IEC COMPATIBILITY
* IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
* I

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD18, SD12. Please refer to the document for exact specifications by model.

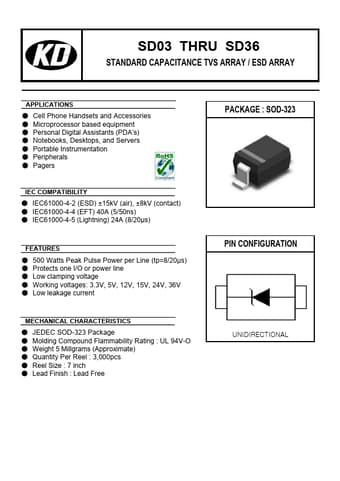

datasheet Preview Page 2 datasheet Preview Page 3
