AAT3105 Low Cost 1x/2x Four-Channel Charge Pump WLED Driver

AAT3105 Description

DATA SHEET AAT3105 Low Cost 1x/2x Four-Channel Charge Pump WLED Driver General .
The AAT3105 is a charge-pump based, current-source white LED driver capable of driving one to four LEDs up to 30mA, each.

AAT3105 Features

* Drives up to 4 LEDs at up to 30mA each
* Automatic Switching Between 1x and 2x Modes
* 0.85MHz Switching Frequency
* Linear LED Output Current Control
* Universal PWM Interface
* ±10% LED Output Current Accuracy
* ±3% LED Output Curren

📥 Download Datasheet

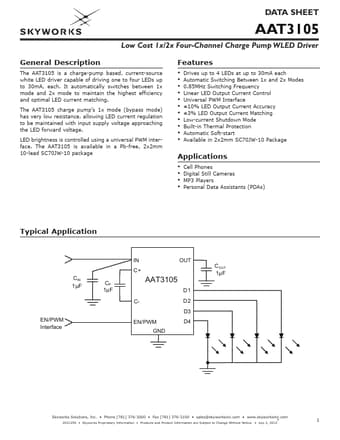

Preview of AAT3105 PDF
