AAT3119 - High Efficiency 2X Charge Pump

Description

The AAT3119 is a general purpose high efficiency voltage regulated charge pump IC that can produce output current levels up to 150mA.

As a voltage regulated output device, it may be used for general voltage boost applications or to power white, RGB, or flash type LEDs from a 2.7V to 5.5V input.

Features

  • VIN Range: 2.7V to 5.5V.
  • 150mA of Output Current.
  • Peak Current up to 250mA.
  • Regulated Output Voltage.
  • 1.2MHz Switching Frequency.
  • Low Noise Constant Frequency Operation.

📥 Download Datasheet

Datasheet Details

Part number AAT3119
Manufacturer Skyworks
File Size 1.67 MB
Description High Efficiency 2X Charge Pump
Datasheet download datasheet AAT3119 Datasheet

📁 Similar Datasheet

  • AAT3119 - High Efficiency 2X Charge Pump (AAT)
  • AAT3110 - MicroPower Regulated Charge Pump (Advanced Analogic Technologies)
  • AAT3110 - MicroPower Regulated Charge Pump (Skyworks Solutions)
  • AAT3111 - MicroPower Regulated Charge Pump (Advanced Analogic Technologies)
  • AAT3111 - MicroPower Regulated Charge Pump (Skyworks Solutions)
  • AAT3112 - High Efficiency Charge Pump (AAT)
  • AAT3113 - High Efficiency 1.5X Fractional Charge Pumps For White LED Applications (Advanced Analogic Technologies)
  • AAT3113 - High Efficiency 1.5X Fractional Charge Pumps (Skyworks Solutions)
  • AAT3114 - High Efficiency 1.5X Fractional Charge Pumps (Skyworks Solutions)
  • AAT3114 - High Efficiency 1.5X Fractional Charge Pumps (AAT)
Other Datasheets by Skyworks
  • AAT3112 - 500mA High Efficiency Charge Pump
  • AAT3103 - Three-Channel Charge-Pump LED Driver
  • AAT3104 - Low Cost 1x/2x Four-Channel Charge Pump WLED Driver
  • AAT3105 - Low Cost 1x/2x Four-Channel Charge Pump WLED Driver
  • AAT3120 - Three-Channel Charge Pump
  • AAT3121 - High Efficiency 1.5X Fractional Charge Pump
  • AAT3122 - High Efficiency 1X/1.5X Fractional Charge Pump
  • AAT3129 - High Efficiency 1X/1.5X/2X Charge Pump

Full PDF Text Transcription

Click to expand full text

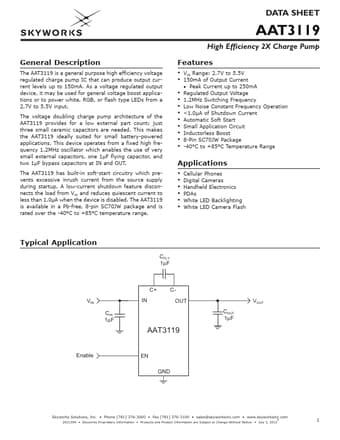

General Description The AAT3119 is a general purpose high efficiency voltage regulated charge pump IC that can produce output current levels up to 150mA. As a voltage regulated output device, it may be used for general voltage boost applications or to power white, RGB, or flash type LEDs from a 2.7V to 5.5V input. The voltage doubling charge pump architecture of the AAT3119 provides for a low external part count; just three small ceramic capacitors are needed. This makes the AAT3119 ideally suited for small battery-powered applications. This device operates from a fixed high frequency 1.2MHz oscillator which enables the use of very small external capacitors, one 1µF flying capacitor, and two 1µF bypass capacitors at IN and OUT.
