AAT3114A - High Efficiency 1.5X Fractional Charge Pumps

Download the AAT3114A datasheet PDF (AAT3114 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high efficiency 1.5x fractional charge pumps.

Description

The AAT3113 and AAT3114/14A are low noise, constant frequency charge pump DC/DC converters that use fractional (1.5X) conversion to increase efficiency in white LED applications.

The devices can be used to produce current levels up to 20mA for each output from a 2.7V to 5.5V input.

Features

  • AnalogicTech’s Simple Serial Control™ (S2Cwire™) interface is used to enable, disable, and set the LED drive current for 32-level logarithmic scale LED brightness control. AAT3113 and AAT3114/14A devices have a thermal management system for protection in the event of a short-circuit condition on any of the output pins. Built-in.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AAT3114_AAT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AAT3114A
Manufacturer AAT
File Size 301.40 KB
Description High Efficiency 1.5X Fractional Charge Pumps
Datasheet download datasheet AAT3114A Datasheet

📁 Similar Datasheet

  • AAT3114 - High Efficiency 1.5X Fractional Charge Pumps (Skyworks Solutions)
  • AAT3110 - MicroPower Regulated Charge Pump (Advanced Analogic Technologies)
  • AAT3110 - MicroPower Regulated Charge Pump (Skyworks Solutions)
  • AAT3111 - MicroPower Regulated Charge Pump (Advanced Analogic Technologies)
  • AAT3111 - MicroPower Regulated Charge Pump (Skyworks Solutions)
  • AAT3112 - 500mA High Efficiency Charge Pump (Skyworks)
  • AAT3113 - High Efficiency 1.5X Fractional Charge Pumps For White LED Applications (Advanced Analogic Technologies)
  • AAT3113 - High Efficiency 1.5X Fractional Charge Pumps (Skyworks Solutions)
  • AAT3119 - High Efficiency 2X Charge Pump (Skyworks)
  • AAT3103 - 3-Channel Charge-Pump LED Driver (Advanced Analog Technology)
Other Datasheets by AAT
  • AAT3114 - High Efficiency 1.5X Fractional Charge Pumps
  • AAT3112 - High Efficiency Charge Pump
  • AAT3119 - High Efficiency 2X Charge Pump
  • AAT3120 - 3-Channel Charge Pump
  • AAT3122 - High Efficiency 1X/1.5X Fractional Charge Pump
  • AAT3123 - High Efficiency 1X/1.5X Fractional Charge Pump
  • AAT3123A - High Efficiency 1X/1.5X Fractional Charge Pump
  • AAT3124 - High Efficiency 1X/1.5X Fractional Charge Pump

Full PDF Text Transcription

Click to expand full text

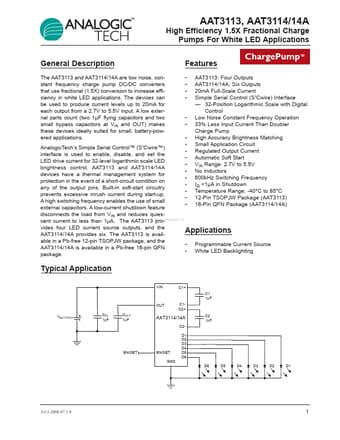

High Efficiency 1.5X Fractional Charge Pumps For White LED Applications General Description The AAT3113 and AAT3114/14A are low noise, constant frequency charge pump DC/DC converters that use fractional (1.5X) conversion to increase efficiency in white LED applications. The devices can be used to produce current levels up to 20mA for each output from a 2.7V to 5.5V input. A low external parts count (two 1µF flying capacitors and two small bypass capacitors at VIN and OUT) makes these devices ideally suited for small, battery-powered applications.
