AAT2430A Sixteen-Channel White LED Driver Solution

AAT2430A Description

PRODUCT SUMMARY AAT2430A Sixteen-Channel White LED Driver Solution with LED Current and Timing Control General .
The AAT2430A is a highly integrated, high efficiency white LED backlight solution for large size LCD panels used in LCD TVs.

AAT2430A Features

* VIN Range: 10.8V
* 28V
* 16 Programmable LED Current Sinks ▪ ±1.5% Accuracy @ 25°C ▪ ±1.5% Matching @ 25°C
* SPI Interface ▪ Digitally Programmable Individual Channels ▪ Up to 15MHz Clock Speed ▪ Read/Write Registers
* High Resolution Digital Control for Ind

AAT2430A Applications

* Large Size LCD TVs, Panels
* White LED Backlight, Dynamic Edge LCD TV Backlight Skyworks Solutions, Inc.
* Phone [781] 376-3000
* Fax [781] 376-3100
* sales@skyworksinc. com
* www. skyworksinc. com 202192A
* Skyworks Proprietary Information

📥 Download Datasheet

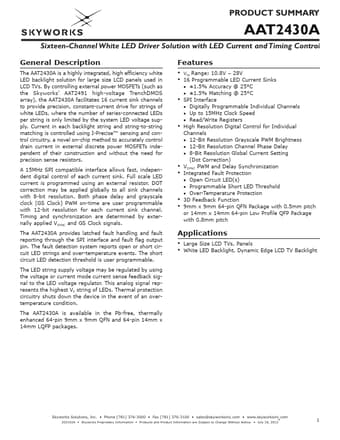

Preview of AAT2430A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2430A
Manufacturer
Skyworks
File Size
296.51 KB
Datasheet
AAT2430A-Skyworks.pdf
Description
Sixteen-Channel White LED Driver Solution
