AAT2401, AAT2400 Sixteen-Channel White LED Driver Solution

AAT2401 Description

DATA SHEET AAT2400/2401 Sixteen-Channel White LED Driver Solution with Full LED Current and Timing Control General .
The AAT2400/2401 is a highly integrated, high efficiency white LED backlight solution for large size LCD panels used in LCD TVs.

AAT2401 Features

* VIN Range: 10.8V
* 28V
* Integrated Boost Converter ▪ VOUT(MAX): 40V ▪ IOUT(MAX): 1.6A
* Up to 95% Efficiency
* Switching Frequency Options ▪ 600 kHz ▪ Sync to External Clock (optional)
* 16 LED Current Sinks up to 100mA/ch ▪ ±2.5% Accuracy (

AAT2401 Applications

* Large Size LCD TV, Panels
* White LED Backlight Skyworks Solutions, Inc.
* Phone [781] 376-3000
* Fax [781] 376-3100
* sales@skyworksinc. com
* www. skyworksinc. com 202307A
* Skyworks Proprietary Information
* Products and Product In

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AAT2401, AAT2400. Please refer to the document for exact specifications by model.

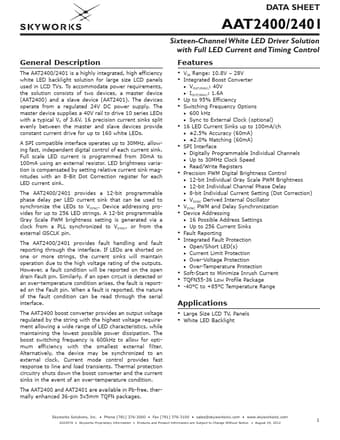

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2401, AAT2400
Manufacturer
Skyworks
File Size
1.07 MB
Datasheet
AAT2400-Skyworks.pdf
Description
Sixteen-Channel White LED Driver Solution
Note
This datasheet PDF includes multiple part numbers: AAT2401, AAT2400.
Please refer to the document for exact specifications by model.
