AAT2430A-1 Sixteen-Channel White LED Driver Solution

AAT2430A-1 Description

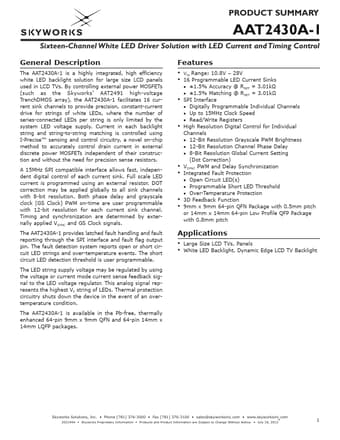

PRODUCT SUMMARY AAT2430A-1 Sixteen-Channel White LED Driver Solution with LED Current and Timing Control General .
The AAT2430A-1 is a highly integrated, high efficiency white LED backlight solution for large size LCD panels used in LCD TVs.

AAT2430A-1 Features

* VIN Range: 10.8V
* 28V
* 16 Programmable LED Current Sinks ▪ ±1.5% Accuracy @ RSET = 3.01kΩ ▪ ±1.5% Matching @ RSET = 3.01kΩ
* SPI Interface ▪ Digitally Programmable Individual Channels ▪ Up to 15MHz Clock Speed ▪ Read/Write Registers
* High Resolution Digit

AAT2430A-1 Applications

* Large Size LCD TVs, Panels
* White LED Backlight, Dynamic Edge LCD TV Backlight Skyworks Solutions, Inc.
* Phone [781] 376-3000
* Fax [781] 376-3100
* sales@skyworksinc. com
* www. skyworksinc. com 202194A
* Skyworks Proprietary Information

📥 Download Datasheet

Preview of AAT2430A-1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2430A-1
Manufacturer
Skyworks
File Size
300.07 KB
Datasheet
AAT2430A-1-Skyworks.pdf
Description
Sixteen-Channel White LED Driver Solution
