XR16M580 - 1.62V To 3.63V High Performance UART

Sipex Corporation

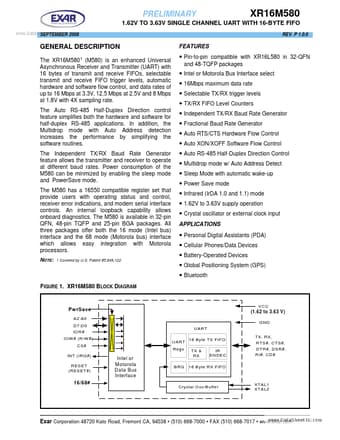

XR16M580 Datasheet Preview — Preview of XR16M580 PDF

Datasheet Details

Part number	XR16M580
Manufacturer	Sipex Corporation
File Size	90.43 KB
Description	1.62V To 3.63V High Performance UART
Datasheet	XR16M580_SipexCorporation.pdf

XR16M580 Product details

Description

The XR16M5801 (M580) is an enhanced Universal Asynchronous Receiver and Transmitter (UART) with 16 bytes of transmit and receive FIFOs, selectable transmit and receive FIFO trigger levels, automatic hardware and software flow control, and data rates of up to 16 Mbps at 3.3V, 12.5 Mbps at 2.5V and 8 Mbps at 1.8V with 4X sampling rate.

Features

Pin-to-pin compatible with XR16L580 in 32-QFN and 48-TQFP packages.
Intel or Motorola Bus Interface select.
16Mbps maximum data rate.
Selectable TX/RX trigger levels.
TX/RX FIFO Level Counters.
Independent TX/RX Baud Rate Generator.
Fractional Baud Rate Generator.
Auto RTS/CTS Hardware Flow Control.
Auto XON/XOFF Software Flow Control.
Auto RS-485 Half-Duplex Direction Control.
Multidrop mode w/.
