XR16M554D, XR16M554 - 1.62V To 3.63V Quad UART

Sipex Corporation

The XR16M554D by Sipex Corporation is a 1.62V To 3.63V Quad UART. Below is the official datasheet preview.

📥 Download Datasheet

XR16M554D 1.62V To 3.63V Quad UART by Sipex Corporation - Datasheet Preview — Official preview page of the **XR16M554D** 1.62V To 3.63V Quad UART datasheet (Sipex Corporation).

Datasheet Details

Part number	XR16M554D, XR16M554
Manufacturer	Sipex Corporation
File Size	1.36 MB
Description	1.62V To 3.63V Quad UART
Datasheet	XR16M554_SipexCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: XR16M554D, XR16M554. Please refer to the document for exact specifications by model.

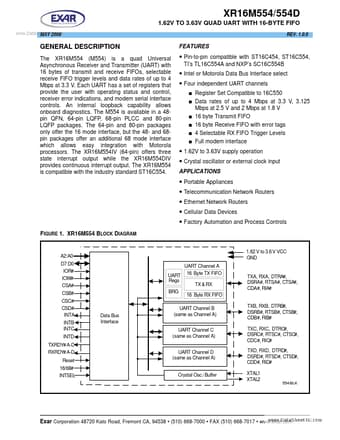

Additional preview pages of the XR16M554D datasheet.

XR16M554D Product details

Description

The XR16M554 (M554) is a quad Universal Asynchronous Receiver and Transmitter (UART) with 16 bytes of transmit and receive FIFOs, selectable receive FIFO trigger levels and data rates of up to 4 Mbps at 3.3 V.

Features

Pin-to-pin compatible with ST16C454, ST16C554, TI’s TL16C554A and NXP’s SC16C554B.
Intel or Motorola Data Bus Interface select.
Four independent UART channels.
Register Set Compatible to 16C550 Data rates of up to 4 Mbps at 3.3 V, 3.125 Mbps at 2.5 V and 2 Mbps at 1.8 V 16 byte Transmit FIFO 16 byte Receive FIFO with error tags 4 Selectable RX FIFO Trigger Levels Full modem interface.
1.62V to 3.63V supply operation.
