XR16M2650 - HIGH PERFORMANCE LOW VOLTAGE DUART

Description

The XR16M26501 (M2650) is a high performance dual universal asynchronous receiver and transmitter (UART) with 32 bytes TX and RX FIFOs.

The device operates from 1.62 to 3.63 volts and is pin-to-pin and software compatible to the ST16C2550, XR16V2550 and XR16V2650.

Features

  • of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. Onboard registers provide the user with operational status and data error flags. An internal loopback capability allows system diagnostics. Independent programmable baud rate generators are provided in each channel to select data rates up to 16 Mbps at 3.3 Volt with 4X sampling clock. The M2650 is available in 48-pin TQFP and 32-pin QFN packages. NOTE: 1 Covered by U. S. Paten.

📥 Download Datasheet

📁 Similar Datasheet

  • XR16M554 - 1.62V To 3.63V Quad UART (Sipex Corporation)
  • XR16M554D - 1.62V To 3.63V Quad UART (Sipex Corporation)
  • XR16M564 - 1.62V TO 3.63V Quad UART (Sipex Corporation)
  • XR16M564D - 1.62V TO 3.63V Quad UART (Sipex Corporation)
  • XR16M570 - 1.62V TO 3.63V HIGH PERFORMANCE UART (Exar)
  • XR16M580 - 1.62V To 3.63V High Performance UART (Sipex Corporation)
  • XR16M598 - 1.62V To 3.63V High Performance Octal UART (Sipex Corporation)
  • XR16M654 - 1.62V TO 3.63V QUAD UART (Exar)
  • XR16M654D - 1.62V TO 3.63V QUAD UART (Exar)
  • XR16M670 - 1.62V TO 3.63V HIGH PERFORMANCE UART (Exar)
Other Datasheets by Exar Corporation

Full PDF Text Transcription

Click to expand full text

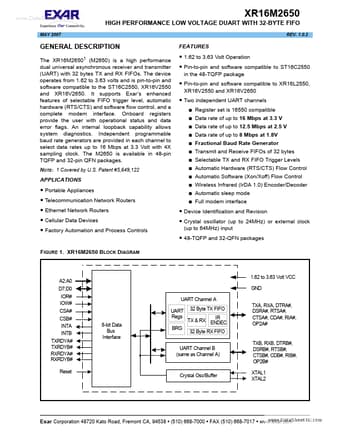

www.DataSheet4U.com MAY 2007 XR16M2650 HIGH PERFORMANCE LOW VOLTAGE DUART WITH 32-BYTE FIFO REV. 1.0.2 GENERAL DESCRIPTION The XR16M26501 (M2650) is a high performance dual universal asynchronous receiver and transmitter (UART) with 32 bytes TX and RX FIFOs. The device operates from 1.62 to 3.63 volts and is pin-to-pin and software compatible to the ST16C2550, XR16V2550 and XR16V2650. It supports Exar’s enhanced features of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. Onboard registers provide the user with operational status and data error flags. An internal loopback capability allows system diagnostics.
