SH69P48A - OTP 4K 4-bit Micro-controller

Sino Wealth

The SH69P48A by Sino Wealth is a OTP 4K 4-bit Micro-controller. Below is the official datasheet preview.

📥 Download Datasheet

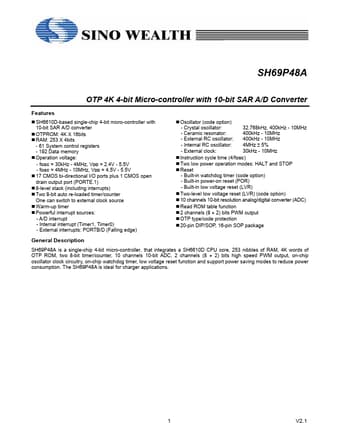

SH69P48A OTP 4K 4-bit Micro-controller by Sino Wealth - Datasheet Preview — Official preview page of the **SH69P48A** OTP 4K 4-bit Micro-controller datasheet (Sino Wealth).

Datasheet Details

Part number	SH69P48A
Manufacturer	Sino Wealth
File Size	383.32 KB
Description	OTP 4K 4-bit Micro-controller
Datasheet	SH69P48A-SinoWealth.pdf
Additional preview pages of the SH69P48A datasheet.

SH69P48A Product details

Description

SH69P48A is a single-chip 4-bit micro-controller, that integrates a SH6610D CPU core, 253 nibbles of RAM, 4K words of OTP ROM, two 8-bit timer/counter, 10 channels 10-bit ADC, 2 channels (8 + 2) bits high speed PWM output, on-chip oscillator clock circuitry, on-chip watchdog timer, low voltage reset function and support power saving modes to reduce power consumption.

Features

SH6610D-based single-chip 4-bit micro-controller with 10-bit SAR A/D converter.
OTPROM: 4K X 16bits.
RAM: 253 X 4bits - 61 System control registers - 192 Data memory.
Operation voltage: - fOSC = 30kHz - 4MHz, VDD = 2.4V - 5.5V - fOSC = 4MHz - 10MHz, VDD = 4.5V - 5.5V.
17 CMOS bi-directional I/O ports plus 1 CMOS open drain output port (PORTE.1).
8-level stack (including interrupts).
Two 8-bit auto re-loaded timer/counter One can swi.
