SH69P48 - OTP 4K 4-bit Micro-controller

Description

The SH69P48 is an advanced CMOS 4-bit microcontroller.

Features

  • SH6610D-based single-chip 4-bit microcontroller with 10-bit SAR A/D converter OTP ROM: 4K X 16 bits RAM: 253 X 4 bits - System register: 61 X 4 bits - Data memory: 192 X 4 bits Operation voltage: - fOSC=30kHz - 4MHz, VDD=2.4V - 5.5V - fOSC=4MHz - 10MHz, VDD=4.5V - 5.5V 17 CMOS bi-directional I/O pins (exclude 1 output only pin) Built in pull-up for I/O port Two 8-bit auto re-load timer/counter, One can switch to external clock source Read Rom Table function 8-level subroutine nesting (including.

📥 Download Datasheet

Datasheet Details

Part number SH69P48
Manufacturer Sino Wealth
File Size 355.39 KB
Description OTP 4K 4-bit Micro-controller
Datasheet download datasheet SH69P48 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SH69P42 OTP 4-Bit Microcontroller Sino Wealth Microelectronic
SH69P20 OTP 4-bit Microcontroller Sino
SH69P23 OTP 4-bit Microcontroller SINO
SH69P25 OTP 4K x 4-Bit Micro-Controller Sino Wealth Microelectronic
SH69P55 OTP 8K 4-Bit Micro-controller Sino

Other Datasheets by Sino Wealth

Part Number Description
SH69P481 4K One-Time Programming 12-Bit ADC Type 4-Bit MCU
SH69P482 4K One-Time Programming 12-Bit ADC Type 4-Bit MCU
SH69P48A OTP 4K 4-bit Micro-controller
SH69P43 OTP 4-Bit Microcontroller
SH69P461 OTP 2K 4-bit Micro-controller

Full PDF Text Transcription

Click to expand full text

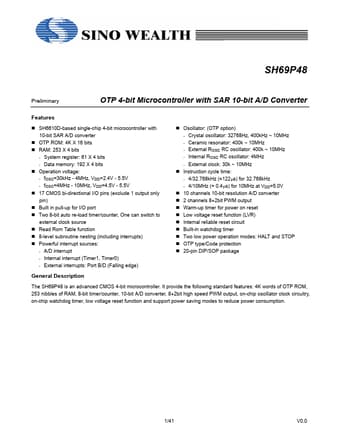

SH69P48 Preliminary Features SH6610D-based single-chip 4-bit microcontroller with 10-bit SAR A/D converter OTP ROM: 4K X 16 bits RAM: 253 X 4 bits - System register: 61 X 4 bits - Data memory: 192 X 4 bits Operation voltage: - fOSC=30kHz - 4MHz, VDD=2.4V - 5.5V - fOSC=4MHz - 10MHz, VDD=4.5V - 5.
