SH69P461 - OTP 2K 4-bit Micro-controller

Sino Wealth

📥 Download Datasheet

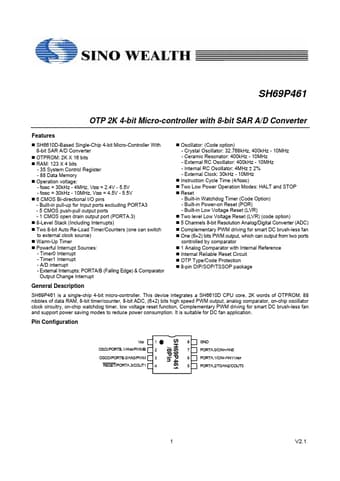

SH69P461 Datasheet Preview — Preview of SH69P461 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SH69P461
Manufacturer	Sino Wealth
File Size	323.91 KB
Description	OTP 2K 4-bit Micro-controller
Datasheet	SH69P461-SinoWealth.pdf

SH69P461 Product details

Features

SH6610D-Based Single-Chip 4-bit Micro-Controller With 8-bit SAR A/D Converter OTPROM: 2K X 16 bits RAM: 123 X 4 bits - 35 System Control Register - 88 Data Memory Operation voltage: - fOSC = 30kHz - 4MHz, VDD = 2.4V - 5.5V - fOSC = 30kHz - 10MHz, VDD = 4.5V - 5.5V 6 CMOS Bi-directional I/O pins - Built-in pull-up for Input ports excluding PORTA3 - 5 CMOS push-pull output ports - 1 CMOS open drain output port (PORTA.3) 8-Level Stack (Including Interrupts) Two 8-bit Auto Re-Load Timer/Counters (on.
