SSF2816E, MOSFET

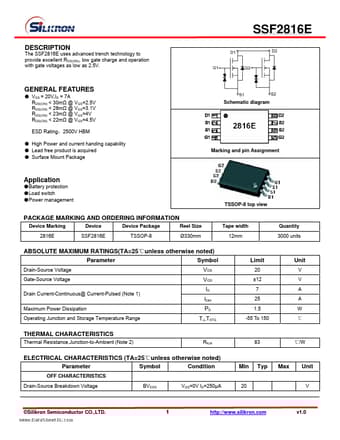

SSF2816E www.DataSheet4U.com DESCRIPTION The SSF2816E uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation wit

Features

* VDS = 20V,ID = 7A RDS(ON) < 30mΩ @ VGS=2.5V RDS(ON) < 26mΩ @ VGS=3.1V RDS(ON) < 23mΩ @ VGS=4V RDS(ON) < 22mΩ @ VGS=4.5V ESD Rating：2500V HBM
* High Power and current handing capability
* Lead free product is acquired
* Surface Mount Package Schematic diagram Marking and pin Assign

Applications

* that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your Silikron representative nearest you before using any Sil
