SSF2816EBK - Dual N-Channel MOSFET

Download the SSF2816EBK datasheet PDF. This datasheet also covers the SSF2816EBK-GOOD variant, as both devices belong to the same dual n-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

Description

The SSF2816EBK uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

  • VDS = 20V,ID = 7A RDS(ON) < 30mΩ @ VGS=2.5V RDS(ON) < 26mΩ @ VGS=3.1V RDS(ON) < 23mΩ @ VGS=4V RDS(ON) < 22mΩ @ VGS=4.5V ESD Rating：2000V HBM.
  • High Power and current handing capability.
  • Lead free product.
  • Surface Mount Package Schematic Diagram Marking and Pin Assignment.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SSF2816EBK-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SSF2816EBK
Manufacturer GOOD-ARK
File Size 457.54 KB
Description Dual N-Channel MOSFET
Datasheet download datasheet SSF2816EBK Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SSF2816EB MOSFET Silikron Semiconductor
SSF2816E MOSFET Silikron Semiconductor Co
SSF2810EH2 MOSFET Silikron Semiconductor
SSF2814E MOSFET Silikron Semiconductor
SSF2814EH2 MOSFET Silikron Semiconductor

Other Datasheets by GOOD-ARK

Part Number Description
SSF2816EB Dual N-Channel MOSFET
SSF2814E N-Channel MOSFET
SSF20NS60F 600V N-Channel MOSFET
SSF2116 20V N-Channel + P-Channel Complementary MOSFET
SSF2122E 20V Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

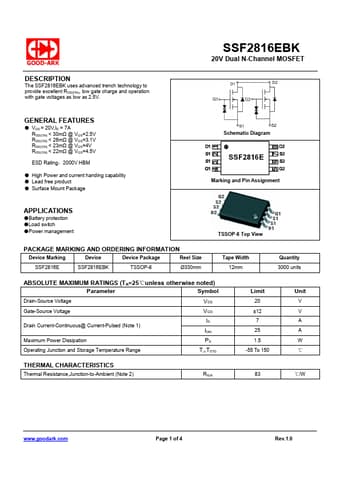

DESCRIPTION The SSF2816EBK uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. SSF2816EBK 20V Dual N-Channel MOSFET GENERAL FEATURES ● VDS = 20V,ID = 7A RDS(ON) < 30mΩ @ VGS=2.5V RDS(ON) < 26mΩ @ VGS=3.1V RDS(ON) < 23mΩ @ VGS=4V RDS(ON) < 22mΩ @ VGS=4.
