SY8208A Synchronous Step-Down Regulator

SY8208A Description

 www.szyucan.com  Application Notes: AN_SY8208A High Efficiency Fast Response 8A Continuous, 16A Peak, 28V Input Synchronous Step Down Regulator Gen.
The SY8208A develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 8A continuous, 16A peak current.

SY8208A Features

* Low RDS(ON) for internal switches (top/bottom): 20/10 mΩ
* Wide input voltage range: 4-28V
* Instant PWM architecture to achieve fast transient responses
* Internal 400uS softstart limits the inrush current
* Pseudo-constant frequency: 800kHz.
* 8A c

SY8208A Applications

* and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 800kHz under continuous conduction mode to minimize the size of inductor and capacitor. Ordering Information SY8208
* (
* )
* Temperature Code Package Code Optional Spec Code T

📥 Download Datasheet

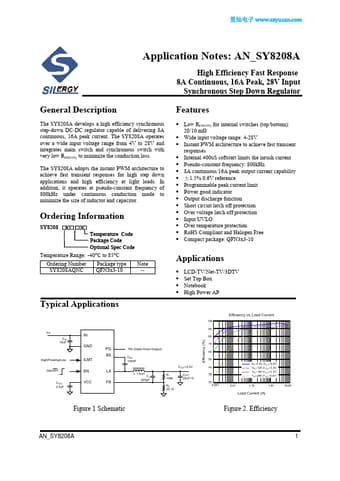

Preview of SY8208A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8208A
Manufacturer
Silergy
File Size
4.35 MB
Datasheet
SY8208A-Silergy.pdf
Description
Synchronous Step-Down Regulator
