SY8201C - Synchronous Step Down Regulator

Datasheet Summary

Description

SY8201C develops high efficiency synchronous stepdown DC-DC converter capable of delivering 1A load current.

SY8201C operates over a wide input voltage range from 4.5V to 27V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Features

  • Low RDS(ON) for internal switches (top/bottom):350/150 mΩ.
  • 4.5-27V input voltage range.
  • Instant PWM architecture to achieve fast transient responses.
  • Internal softstart limits the inrush current.
  • 2% 0.6V reference.
  • RoHS Compliant and Halogen Free.
  • Compact package: SOT23-6.

📥 Download Datasheet

Datasheet preview – SY8201C

Datasheet Details

Part number SY8201C
Manufacturer Silergy
File Size 496.37 KB
Description Synchronous Step Down Regulator
Datasheet download datasheet SY8201C Datasheet
Additional preview pages of the SY8201C datasheet.

📁 Similar Datasheet

  • SY8201CABC - 30V 1A 1.4MHz Synchronous Step-Down Regulator (SUNGOOD)
  • SY8205 - N-Channel MOSFET (SANY)
  • SY826 - Special chips for e-cigarettes (AMICRO)
  • SY8022 - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)
  • SY8022L - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)
  • SY84113BU - Low Power 2.5V 1.25Gbps Limiting Post Amplifier (Micrel Semiconductor)
  • SY84402L - 4.25Gbps VCSEL Driver (Micrel Semiconductor)
  • SY84403BL - Ultra Small 3.3V 4.25Gbps CML Low-Power Limiting Post Amplifier (Micrel Semiconductor)
  • SY84782U - Low Power 2.5V 1.25Gbps FP/DFB Laser Diode Driver (Micrel Semiconductor)
  • SY8601 - Linear Li-Ion Battery Charger (TPS)
Other Datasheets by Silergy
  • SY8201 - Synchronous Step Down Regulator
  • SY8204 - Synchronous Step Down Regulator
  • SY8205 - Synchronous Step Down Regulator
  • SY8208A - Synchronous Step-Down Regulator
  • SY8208AQNC - Synchronous Step-Down Regulator
  • SY8213 - Synchronous Step Down Regulator
  • SY8263 - Synchronous Step Down Regulator
  • SY8284 - Synchronous Step Down Regulator

Full PDF Text Transcription

Click to expand full text

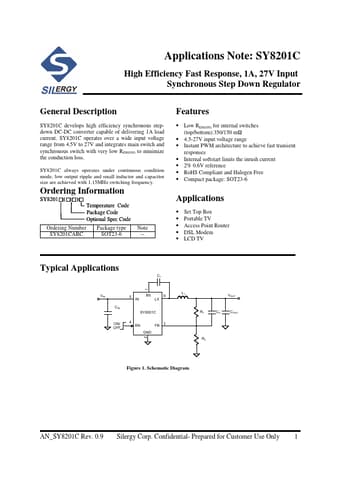

Applications Note: SY8201C High Efficiency Fast Response, 1A, 27V Input Synchronous Step Down Regulator General Description SY8201C develops high efficiency synchronous stepdown DC-DC converter capable of delivering 1A load current. SY8201C operates over a wide input voltage range from 4.5V to 27V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY8201C always operates under continuous condition mode, low output ripple and small inductor and capacitor size are achieved with 1.15MHz switching frequency. Ordering Information SY8201□(□□)□ Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY8201CABC SOT23-6 -- Features • Low RDS(ON) for internal switches (top/bottom):350/150 mΩ • 4.
