SY8204 Synchronous Step Down Regulator

SY8204 Description

Application Notes: AN_SY8204 High Efficiency Fast Response, 4A, 30V Input Synchronous Step Down Regulator General .
SY8204 develops a high efficiency synchronous stepdown DC-DC converter capable of delivering 4A output current.

SY8204 Features

* Low RDS(ON) for internal switches (top/bottom): 80/50 mΩ
* 4.5-30V input voltage range
* Instant PWM architecture to achieve fast transient responses
* External softstart limits the inrush curre t
* Pseudo-constant frequency: 500kHz at heavy loads

SY8204 Applications

* and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz under continous conduction mode to minimize the size of inductor and capacitor. Ordering Information SY8204 (
* ) Temperature Code Package Code Optional Spec

📥 Download Datasheet

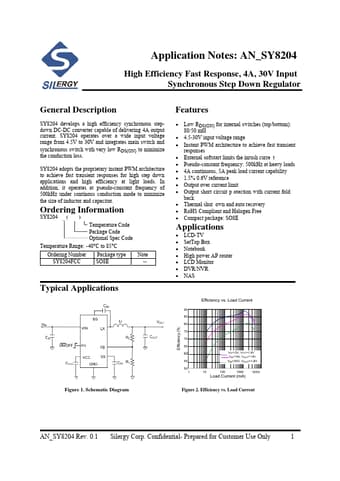

Preview of SY8204 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8204
Manufacturer
Silergy
File Size
946.57 KB
Datasheet
SY8204-Silergy.pdf
Description
Synchronous Step Down Regulator
