SY8121B 1.2MHz Synchronous Step Down Regulator

SY8121B Description

Application Note: SY8121B High Efficiency Fast Response, 2A, 18V Input 1.2MHz Synchronous Step Down Regulator General .
SY8121B develops high efficiency synchronous stepdown DC-DC converter capable of delivering 2A load current.

SY8121B Features

* Low RDS(ON) for internal switches (top/bottom):170/160 mΩ
* 4.5-18V input voltage range
* 2A load current capability
* Instant PWM architecture to achieve fast transient responses
* Internal softstart limits the inrush current
* 2% 0.6V reference

SY8121B Applications

* Set Top Box
* Portable TV
* Access Point Router
* DSL Modem

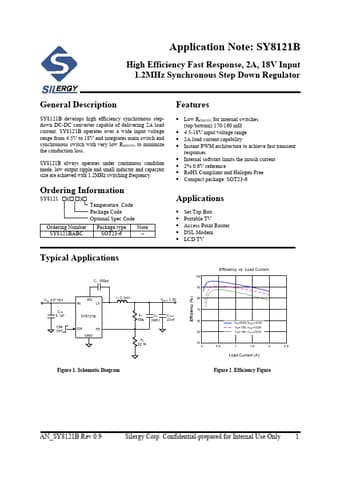

* LCD TV Typical Applications Efficiency (%) Figure 1. Schematic Diagram Figure 2. Efficiency Figure AN_SY8121B Rev.0.9 Silergy Corp. Confidential-prepared for Internal Use Only 1 Pinout (top

📥 Download Datasheet

Preview of SY8121B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8121B
Manufacturer
Silergy
File Size
2.74 MB
Datasheet
SY8121B-Silergy.pdf
Description
1.2MHz Synchronous Step Down Regulator
