SY8120E1 Synchronous Step Down Regulator

SY8120E1 Description

SY8120E1 High Efficiency, Fast Response, 2.0A, 18V Input Synchronous Step Down Regulator General .
The SY8120E1 is a high efficiency, synchronous stepdown DC/DC converter capable of delivering 2A load current.

SY8120E1 Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 130mΩ/105mΩ
* 4.5-18V Input Voltage Range
* 2A Output Current Capability
* 500kHz Switching Frequency Minimize the External Components
* Stable with 10µF COUT and 1.5µH Inductor
* Instant PWM Architecture to Achieve Fast Trans

SY8120E1 Applications

* In addition, it operates at pseudoconstant frequency of 500kHz to minimize the size of inductor and capacitor. Ordering Information SY8120
* (
* )
* Temperature Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY8120E1ABC SOT23-6

📥 Download Datasheet

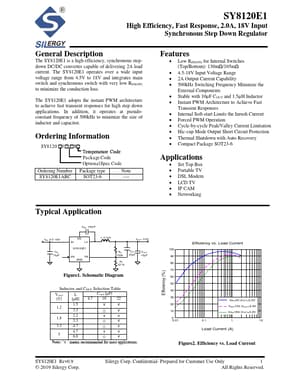

Preview of SY8120E1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8120E1
Manufacturer
Silergy
File Size
612.64 KB
Datasheet
SY8120E1-Silergy.pdf
Description
Synchronous Step Down Regulator
