SY8120BABC, SY8120B Synchronous Step-Down Regulator

SY8120BABC Description

Application Note: AN_SY8120B High Efficiency Fast Response, 2A, 18V Input Synchronous Step Down Regulator General .
SY8120B develops high efficiency synchronous stepdown DC-DC converter capable of delivering 2A load current .

SY8120BABC Features

* Low RDS(ON) for internal switches (top/bottom):145/135 m 4.5-18V input voltage range 2A load current capability Instant PWM architecture to achieve fast transient responses Internal softstart limits the inrush current 2% 0.6V reference RoHS Compliant and Halogen Free Compact package: SOT23-6 Applica

SY8120BABC Applications

* and high efficiency at light loads. In addition, it operates under heavy load conditions to minimize the size of inductor and capacitor. Ordering Information SY8120 ( ) Temperature Code Package Code Optional Spec Code Temperature Range: -40°C to 85°C Ordering Number Package type Note SY8120BABC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SY8120BABC, SY8120B. Please refer to the document for exact specifications by model.

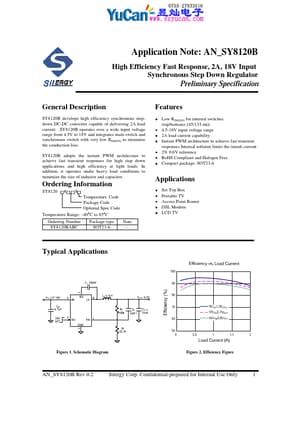

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8120BABC, SY8120B
Manufacturer
Silergy
File Size
924.22 KB
Datasheet
SY8120B-Silergy.pdf
Description
Synchronous Step-Down Regulator
Note
This datasheet PDF includes multiple part numbers: SY8120BABC, SY8120B.
Please refer to the document for exact specifications by model.
