SY8089A1 2A Synchronous Step Down Regulator

SY8089A1 Description

SY8089A1 ` General .
SY8089A1 is a high efficiency 1.

SY8089A1 Features

* 2.5V to 5.5V Input Voltage Range
* 50μA Low Quiescent Current
* Low RDS(ON) for Internal Switches (Top/Bottom) 130mΩ /85mΩ
* High Switching Frequency 1.5MHz Minimizes the External Components
* Internal Soft-start Limits the Inrush Current
* 100% Dropout Operation
* Hic-

SY8089A1 Applications

* Set Top Box
* USB Dongle
* Media Player
* Smart Phone Typical Applications VIN: 2.5-5.5V CIN 10μF/6.3V IN LX EN FB GND L1:1.0µH VOUT:1.8V RH Cff 100k 22pF COUT 10μF/10V RL 49.9k Figure1. Schematic Diagram VOUT [V] Inductor and COUT Selection Table L [µH] 4.7 COUT

📥 Download Datasheet

Preview of SY8089A1 PDF

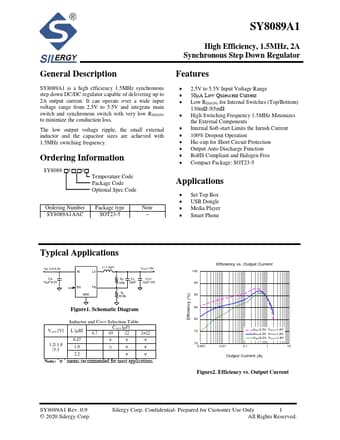

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8089A1
Manufacturer
Silergy
File Size
1.17 MB
Datasheet
SY8089A1-Silergy.pdf
Description
2A Synchronous Step Down Regulator
