SY8089A, SY8089 Synchronous Step Down Regulator

SY8089A Description

Application Note: AN_SY8089/SY8089A High Efficiency 5.5V, 2A continuous, 3A peak, 1MHz Synchronous Step Down Regulator General .
The SY8089 and SY8089A are high-efficiency, high frequency synchronous step-down DC-DC regulator IC capable of delivering up to 2A output current.

SY8089A Features

* Low RDS(ON) for internal switches (top/bottom):110mΩ/80mΩ
* 2.7-5.5V input voltage range
* 2A continuous, 3A peak load current capability
* 1MHz switching frequency minimizes the external components
* Internal softstart limits the inrush current
* Re

SY8089A Applications

* LCD TV
* Set Top Box
* Net PC
* Mini-Notebook PC
* Access Point Router Typical Applications Efficiency (%) VIN: 2.7-5.5V 4 IN 3 L1:2.2µH LX VOUT: 1.8V ON/ OFF CIN 22µF 1 FB 5 EN GND 2 R1 200k C1 COUT 22pF 22µFх2 R2 100k Figure 1.Schematic diagr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SY8089A, SY8089. Please refer to the document for exact specifications by model.

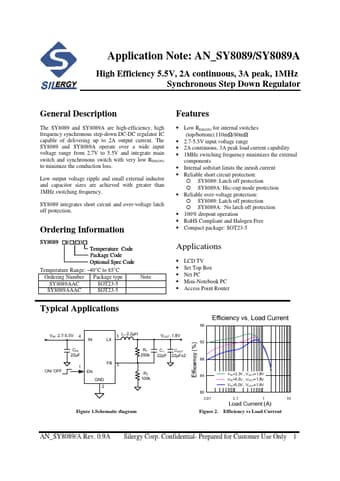

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8089A, SY8089
Manufacturer
Silergy
File Size
1.57 MB
Datasheet
SY8089-Silergy.pdf
Description
Synchronous Step Down Regulator
Note
This datasheet PDF includes multiple part numbers: SY8089A, SY8089.
Please refer to the document for exact specifications by model.
