SY8088 1A Synchronous Step Down Regulator

SY8088 Description

Application Notes: AN_SY8088 High Efficiency 1.5MHz, 1A Synchronous Step Down Regulator Preliminary Specification General .
SY8088 is a high efficiency 1.

SY8088 Features

* Low RDS(ON) for internal switches (top/bottom) 260mΩ/170mΩ
* 2.5~5.5V input voltage range
* 40µA typical quiescent current
* High light load efficiency
* High switching frequency 1.5MHz minimizes the external components
* Internal soft-start limits t

SY8088 Applications

* Portable Navigation Device
* Set Top Box
* USB Dongle
* Media Player
* Smart phone Typical Application Figure1. Schematic Diagram 95 90 85 80 75 70 1 Efficiency vs. Load Current VIN=3.3V,VOUT=1.8V VIN=4.2V,VOUT=1.8V VIN=5.0V,VOUT=1.8V 10 100 Load Curren

📥 Download Datasheet

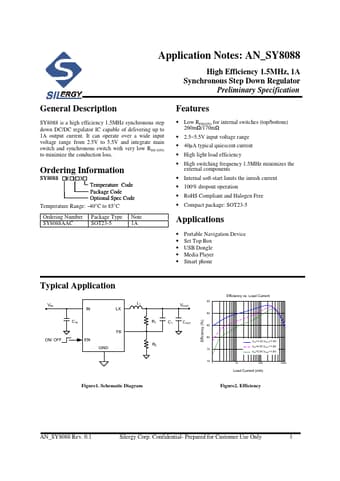

Preview of SY8088 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8088
Manufacturer
Silergy
File Size
3.24 MB
Datasheet
SY8088-Silergy.pdf
Description
1A Synchronous Step Down Regulator
