SY7T609+S1 Energy Measurement Processor

SY7T609+S1 Description

SY7T609+S1 Energy Measurement Processor with Integrated Oscillator .
The SY7T609+S1 is an energy measurement processor (EMP) designed for monitoring any 2-wire circuit.

SY7T609+S1 Features

* High resolution delta-sigma ADC with two analog (sensor) inputs
* Precision internal voltage and timing references minimize external components
* 24-bit energy measurement processor with nonvolatile storage of calibration and configuration data
* Flexible SPI or UAR

SY7T609+S1 Applications

* such as smart-plugs, smart appliances, lighting and building automation. SPI and UART interface options are supported. An optimized protocol for low baud rate UART communications further reduces the BOM cost when data isolation is required. The analog front end (AFE) provides differential analog inp

📥 Download Datasheet

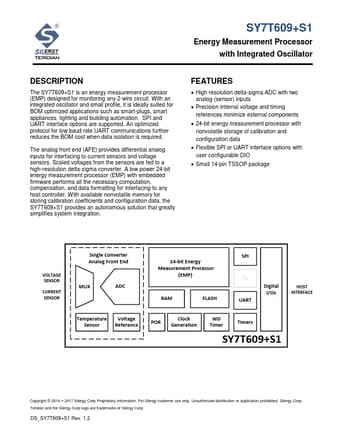

Preview of SY7T609+S1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY7T609+S1
Manufacturer
Silergy
File Size
1.47 MB
Datasheet
SY7T609+S1-Silergy.pdf
Description
Energy Measurement Processor
