SY733021U - 2.5/3.3V 1-to-1 Differential to LVCMOS/LVTTL Translator

Datasheet Summary

Description

Micrel’s SY733021U is a 1-to-1, differential-to-LVCMOS / LVTTL translator.

The differential input is highly flexible and can accept LVPECL, LVDS, LVHSTL, SSTL, and HCSL input types.

Features

  • Differential LVPECL, LVDS, LVHSTL, SSTL, and HCSL inputs.
  • 350MHz maximum frequency.
  • Additive phase jitter:.
  • 90fsRMS, 100MHz (637kHz to 10MHz).

📥 Download Datasheet

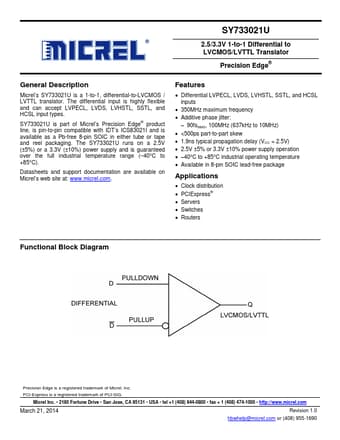

Datasheet preview – SY733021U

Datasheet Details

Part number SY733021U
Manufacturer Micrel Semiconductor
File Size 530.08 KB
Description 2.5/3.3V 1-to-1 Differential to LVCMOS/LVTTL Translator
Datasheet download datasheet SY733021U Datasheet
Additional preview pages of the SY733021U datasheet.

📁 Similar Datasheet

  • SY7301A - 40V High Current Boost LED Driver (Silergy)
  • SY7304 - 1MHz Step Up Regulator (Silergy)
  • SY7320 - 2 position single (SMC)
  • SY7060 - Flexibles Montagesystem (SMC)
  • SY7065 - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost (Silergy)
  • SY7065A - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost (Silergy)
  • SY7066 - 1.8V Minimum Input and 5.5V Maximum Output 6A Peak Current Synchronous Boost (Silergy)
  • SY7069 - 1MHz Synchronous Boost (Silergy)
  • SY7069B - 1MHz Synchronous Boost (Silergy)
  • SY7070 - 100mA Maximum Output Current Synchronous Boost (Silergy)
Other Datasheets by Micrel Semiconductor

    Full PDF Text Transcription

    Click to expand full text
    SY733021U 2.5/3.3V 1-to-1 Differential to LVCMOS/LVTTL Translator Precision Edge® General Description Micrel’s SY733021U is a 1-to-1, differential-to-LVCMOS / LVTTL translator. The differential input is highly flexible and can accept LVPECL, LVDS, LVHSTL, SSTL, and HCSL input types. SY733021U is part of Micrel’s Precision Edge® product line, is pin-to-pin compatible with IDT’s ICS83021I and is available as a Pb-free 8-pin SOIC in either tube or tape and reel packaging. The SY733021U runs on a 2.5V (±5%) or a 3.3V (±10%) power supply and is guaranteed over the full industrial temperature range (–40°C to +85°C). Datasheets and support documentation are available on Micrel’s web site at: www.micrel.com.
