SY7069 1MHz Synchronous Boost

SY7069 Description

Application Note: SY7069 5.5V Maximum Output, 3A Valley Current, 1MHz Synchronous Boost with Auto Bypass Function General .
SY7069 is a high efficiency, synchronous, step-up boost converter designed for one-cell Li-Ion or Lipolymer, or a two to three-cell alkaline Ni-Cd or.

SY7069 Features

* 2.5V minimum input voltage
* Adjustable output voltage from 2.5V to 5.5V
* Min 3A valley current limit
* Capable for seamless transition between boost and bypass mode
* Load disconnect during shutdown
* Low RDS(ON) (main switch/synchronous switch) at 5.0V output: 50mΩ/90mΩ

SY7069 Applications

* It can convert down to 2.5V input voltage and up to 5.5V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. SY7069 can disconnect the output from input during the shutdown mode. When input voltage exceeds the regulated output voltage, SY7069 enters bypass mode a

📥 Download Datasheet

Preview of SY7069 PDF

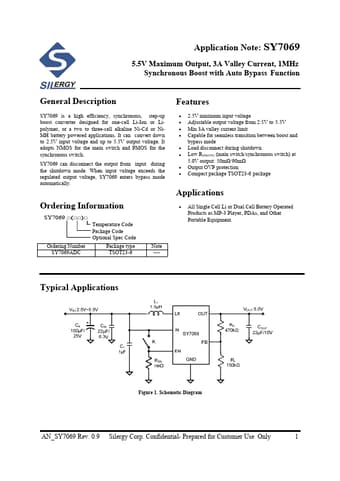

datasheet Preview Page 2 datasheet Preview Page 3
