SLG7NT4229 - PWROK GENERATOR AND STARTUP LATCHING CIRCUIT

Name: SLG7NT4229
SKU: SLG7NT4229-1305004

Silego

The SLG7NT4229 by Silego is a PWROK GENERATOR AND STARTUP LATCHING CIRCUIT. Below is the official datasheet preview.

Datasheet Details

Part number	SLG7NT4229
Manufacturer	Silego
File Size	454.62 KB
Description	PWROK GENERATOR AND STARTUP LATCHING CIRCUIT
Datasheet	SLG7NT4229-Silego.pdf

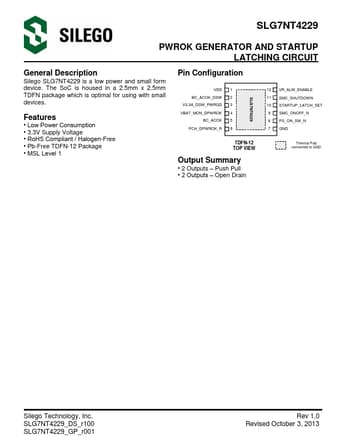

Additional preview pages of the SLG7NT4229 datasheet.

Silego SLG7NT4229 is a low power and small form device.

Low Power Consumption.
3.3V Supply Voltage.
RoHS Compliant / Halogen-Free.
Pb-Free TDFN-12 Package.
MSL Level 1 Pin Configuration SLG7NT4229 VDD BC_ACOK_DSW V3.3A_DSW_PWRGD VBAT_MON_DPWROK BC_ACOK PCH_DPWROK_R 1 2 3 4 5 6 TDFN-12 TOP VIEW Output Summary.
2 Outputs.
Push Pull.
2 Outputs.
Open Drain 12 VR_ALW_ENABLE 11 SMC_SHUTDOWN 10 STARTUP_LATCH_SET 9 SMC_ONOFF_N 8 PS_ON_SW_N 7 GND Thermal Pad connected to G.
