SLG7NT41204 - Gemini Lake RVP

Name: SLG7NT41204
SKU: SLG7NT41204-1524887

Renesas

The SLG7NT41204 by Renesas is a Gemini Lake RVP. Below is the official datasheet preview.

Datasheet Details

Part number	SLG7NT41204
Manufacturer	Renesas
File Size	746.88 KB
Description	Gemini Lake RVP
Datasheet	SLG7NT41204-Renesas.pdf

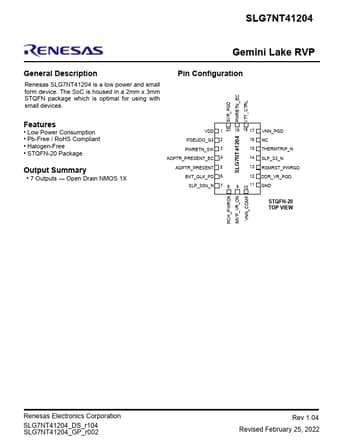

Additional preview pages of the SLG7NT41204 datasheet.

Renesas SLG7NT41204 is a low power and small form device.

Low Power Consumption.
Pb-Free / RoHS Compliant.
Halogen-Free.
STQFN-20 Package Output Summary.
7 Outputs.
Open Drain NMOS 1X VDD PSEUDO_G3 PWRBTN_SW ADPTR_PRESENT_EC ADPTR_PRESENT BXT_GLK_PD SLP_S0ix_N 1 20 19 18 17 2 16 SLG7NT41204 3 15 4 14 5 13 6 78 12 9 10 11 VNN_PGD NC THERMTRIP_N SLP_S3_N RSMRST_PWRGD DDR_VR_PGD GND STQFN-20 TOP VIEW PCH_PWROK IMVP_VR_ON VNN_COMP Renesas Electronics Corporation SLG7NT41204_DS_r104 SLG.
