SD6109, SD6109_SilanMicroelectronicsJoint VOLTAGE MODE PWM POWER SUPPLY

Silan Microelectronics Joint-stock

SD6109 Description

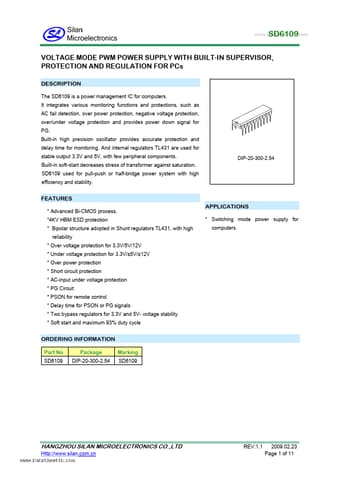

www.DataSheet4U.com SD6109 VOLTAGE MODE PWM POWER SUPPLY WITH BUILT-IN SUPERVISOR, PROTECTION AND REGULATION FOR PCs .
The SD6109 is a power management IC for computers.

SD6109 Features

* Advanced Bi-CMOS process.
* 4KV HBM ESD protection
* Bipolar structure adopted in Shunt regulators TL431, with high reliability
* Over voltage protection for 3.3V/5V/12V
* Under voltage protection for 3.3V/±5V/±12V
* Over power protection
* Short circuit protection

SD6109 Applications

* Switching mode power supply for computers. ORDERING INFORMATION Part No. SD6109 Package DIP-20-300-2.54 Marking SD6109 HANGZHOU SILAN MICROELECTRONICS CO. ,LTD Http://www. silan. com. cn REV:1.1 2009.02.23 Page 1 of 11 www. DataSheet4U. com SD6109 BLOCK DIAGRAM ABSOLUTE MAXIMUM RATING Charac

📥 Download Datasheet

SD6109 Datasheet Preview — This datasheet PDF includes multiple part numbers: SD6109, SD6109_SilanMicroelectronicsJoint. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SD6109, SD6109_SilanMicroelectronicsJoint
Manufacturer: Silan Microelectronics Joint-stock
File Size: 706.09 KB
Datasheet: SD6109_SilanMicroelectronicsJoint-stock.pdf
Description: VOLTAGE MODE PWM POWER SUPPLY
Note: This datasheet PDF includes multiple part numbers: SD6109, SD6109_SilanMicroelectronicsJoint.
Please refer to the document for exact specifications by model.
