SD6000C - STANDARD RECOVERY DIODES

Features

  • Wide current range High voltage ratings up to 2400V High surge current capabilities Diffused junction Hockey Puk version Case style B-44 (R-PUK) 6690A Typical.

📥 Download Datasheet

Datasheet preview – SD6000C

📁 Similar Datasheet

  • SD600N - Standard Recovery Diodes (Vishay)
  • SD600R - Standard Recovery Diodes (Vishay)
  • SD6030AD - FAST RECOVER EPITAXIAL DIODE (STMC)
  • SD603C - Fast Recovery Diodes (Vishay)
  • SD60C31 - (SD60C31 / SD60C51) CMOS SINGLE-COMPONENT 8-BIT MICROCOMPUTER (AUK)
  • SD60C31P - (SD60C31 / SD60C51) CMOS SINGLE-COMPONENT 8-BIT MICROCOMPUTER (AUK)
  • SD60C32 - (SD60C32 / SD60C52) CMOS SINGLE-COMPONENT 8-BIT MICROCOMPUTER (AUK)
  • SD60C32P - (SD60C32 / SD60C52) CMOS SINGLE-COMPONENT 8-BIT MICROCOMPUTER (AUK)
  • SD60C51 - (SD60C31 / SD60C51) CMOS SINGLE-COMPONENT 8-BIT MICROCOMPUTER (AUK)
  • SD60C51P - (SD60C31 / SD60C51) CMOS SINGLE-COMPONENT 8-BIT MICROCOMPUTER (AUK)
Other Datasheets by International Rectifier
  • SD600N - STANDARD RECOVERY DIODES
  • SD600R - STANDARD RECOVERY DIODES
  • SD603C - FAST RECOVERY DIODES

Full PDF Text Transcription

Click to expand full text

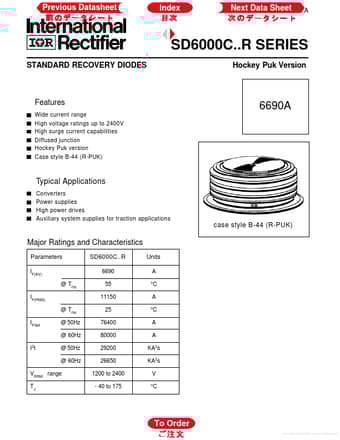

Previous Datasheet Index Next Data Sheet Bulletin I2035/A SD6000C..R SERIES STANDARD RECOVERY DIODES Hockey Puk Version Features Wide current range High voltage ratings up to 2400V High surge current capabilities Diffused junction Hockey Puk version Case style B-44 (R-PUK) 6690A Typical Applications Converters Power supplies High power drives Auxiliary system supplies for traction applications case style B-44 (R-PUK) Major Ratings and Characteristics Parameters IF(AV) @ Ths IF(RMS) @ Ths IFSM @ 50Hz @ 60Hz I2t @ 50Hz @ 60Hz VRRM range TJ SD6000C..R 6690 55 11150 25 76400 80000 29200 26650 1200 to 2400 - 40 to 175 Units A °C A °C A A KA2s KA2s V °C To Order Free Datasheet http://www.datasheet4u. Previous Series Datasheet SD6000C..
