SD6030AD FAST RECOVER EPITAXIAL DIODE

SD6030AD Description

SD6030AD（TO3P） 300V FRED DISCRETE DEVICE FAST RECOVER EPITAXIAL DIODE （FRED） .

SD6030AD Features

* Planar epitaxial chips
* Using high temperature Pt diffusion process
* Very short recovery time
* Extremely low switching losses
* Low IRM values
* Soft recovery behaviour

SD6030AD Applications

* Diode for high frequency switching devices
* Anti saturation diode
* Snubber diode
* Free wheeling diode in converters and motor control circuits
* Rectifiers in switch mode power supplies (SMPS)
* Inductive heating and melting
* Uninterruptible power supplies (UPS)

📥 Download Datasheet

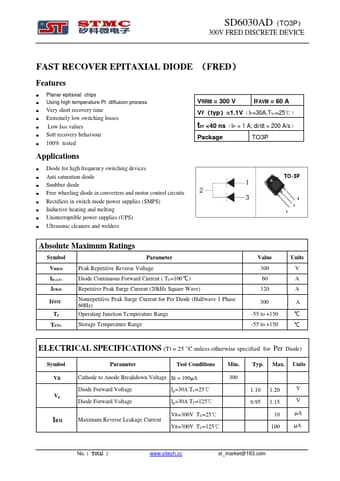

SD6030AD Datasheet Preview — Preview of SD6030AD PDF

Datasheet Details

Part number: SD6030AD
Manufacturer: STMC
File Size: 274.25 KB
Datasheet: SD6030AD-STMC.pdf
Description: FAST RECOVER EPITAXIAL DIODE
