SAB80C515A, SAB - 8-Bit CMOS Single-Chip Microcontroller

Siemens Semiconductor Group

📥 Download Datasheet

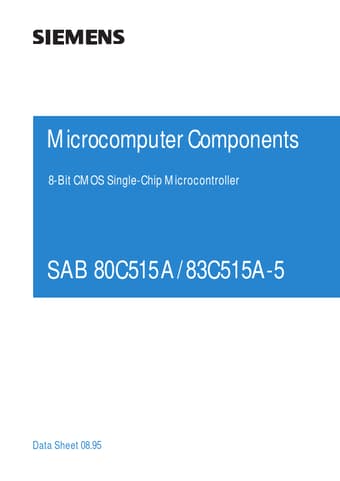

SAB80C515A Datasheet Preview — This datasheet PDF includes multiple part numbers: SAB80C515A, SAB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SAB80C515A, SAB
Manufacturer	Siemens Semiconductor Group
File Size	899.37 KB
Description	8-Bit CMOS Single-Chip Microcontroller
Datasheet	SAB-80C51.pdf
Note	This datasheet PDF includes multiple part numbers: SAB80C515A, SAB. Please refer to the document for exact specifications by model.

SAB80C515A Product details

Description

8-Bit CMOS microcontroller SAB 80C515A-N18 for external memory, 18 MHz SAB 83C515A-5N18 with mask-programmable ROM, 18 MHz SAB 80C515A-N18-T3 Q67120-C0784 P-LCC-68 for external memory, 18 MHz ext. 40 to + 85 °C SAB 83C515A-5N18-T3 Q67120-DXXXX P-LCC-68 with mask-programmable ROM, 18 MHz ext. 40 to + 85 °C SAB 80C515A-M18-T3 Q67120-C0851 P-MQFP-80 for external memory, 18 MHz ext. 40 to + 85 °C SAB 83C515A-5M18-T3 Q67120-DXXXX P-MQF

Features

and operating characteristics the SAB 80C515A/83C515A-5 contains more on-chip RAM/ROM. Furthermore a new 10-bit A/DConverter is implemented as well as extended security mechanisms. The SAB 80C515A is identical with the SAB 83C515A-5 except that it lacks the on-chip program memory. The SAB 80C515A / 83C515A-5 is supplied in a 68-pin plastic leaded chip carrier package (P-LCC- 68) and in a 80-pin plastic metric quad flat package (P-MQFP-80). Versions for extended temperature range.
40 to.
