SAB80C535, SAB Datasheet (Infineon Technologies AG) - 8-Bit CMOS Single-Chip Microcontroller

SAB80C535, SAB, 8-Bit CMOS Single-Chip Microcontroller

8-Bit CMOS Microcontroller with mask-programmable ROM, 12 MHz for external memory, 12 MHz with mask-programmable ROM, 12 MHz ext.

temperature * 40 to + 85 ˚C for external memory, 12 MHz ext.

temperature * 40 to + 85 ˚C with mask-programmable ROM, 16 MHz for external memory, 16 MHz fo

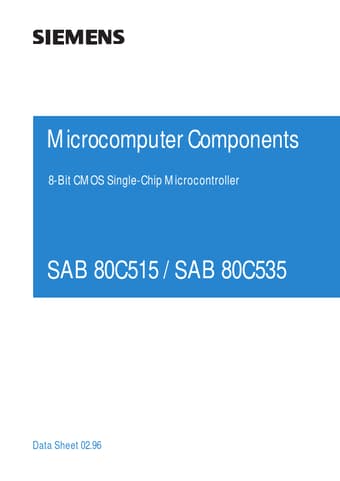

Microcomputer Components 8-Bit CMOS Single-Chip Microcontroller SAB 80C515 / SAB 80C535 Data Sheet 02.96 High-Performance 8-Bit CMOS Single-Chip Microcontroller Preliminary SAB 80C515/80C515-16 SAB 80C535/80C535-16 q q q q q q q q SAB 80C515/80C535 CMOS microcontroller with factory mask-programmable ROM CMOS microcontroller for external ROM q q q q q q q q q q q 8 K × 8 ROM (SAB 80C515 only) 256 × 8 RAM Six 8-bit I/O ports, one input port for digital or analog input Three 16-bit timer/cou

SAB80C535 Features

* ullup resistors. Port 2 pins that have 1's written to them are pulled high by the internal pullup resistors, and in that stat
