SAB80C537, SAB - 8-Bit CMOS Single-Chip Microcontroller

Infineon Technologies AG

📥 Download Datasheet

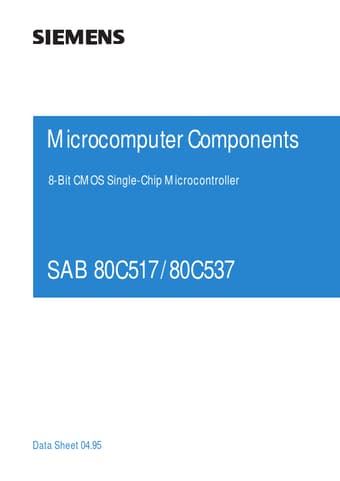

SAB80C537 Datasheet Preview — This datasheet PDF includes multiple part numbers: SAB80C537, SAB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SAB80C537, SAB
Manufacturer	Infineon Technologies AG
File Size	1.03 MB
Description	8-Bit CMOS Single-Chip Microcontroller
Datasheet	SAB-80C53.pdf
Note	This datasheet PDF includes multiple part numbers: SAB80C537, SAB. Please refer to the document for exact specifications by model.

SAB80C537 Product details

Description

8-bit CMOS Microcontroller with factory mask-programmaP-MQFP-100-2 ble ROM, 12 MHz P-LCC-84 P-MQFP-100-2 P-LCC-84 for external memory, 12 MHz with factory mask-programmable ROM, 12 MHz, P-MQFP-100-2 ext.temperature 40 to 85 °C for external ROM, 12 MHz, P-MQFP-100-2 ext. 40 to 85 °C with mask-programmable ROM,16 MHz ext. 40 to 110 °C P-LCC-84 P-MQFP-100-2 P-LCC-84 for external memory, 16 MHz with mask-programmable ROM, 16 MHz e

Features

and operating characteristics the SAB 80C517 is expanded in its arithmetic capabilities, "fail-safe" characteristics, analog signal processing and timer capabilities. The SAB 80C537 is identical with the SAB 80C517 except that it lacks the on-chip program memory. The SAB 80C517/SAB 80C537 is supplied in a 84 pin plastic leaded chip carrier package (P-LCC-84) and in a 100-pin plastic quad metric flat package (P-MQFP-100-2). Ordering Information Type SAB 80C517-N SAB 80C517-M SAB 80C537-N SAB 80C.
